THE ULTIMATE MULTIPLATFORM SYSTEM FOR NON-ABLATIVE SKIN REMODELING

Secret DUO offers the dual non-ablative fractional technologies of a micro-needle RF and 1540nm Er: glass laser in a single device as a total solution for aesthetic treatment. These two technologies can work individually or in combination to provide optimal treatment flexibility to all patients. This new combined non-ablative fractional resurfacing technique offers a much gentler process with significantly reduced downtime and recovery time comparing to conventional ablative fractional lasers.

Service

Non-ablative skin remodeling

Time

60min

Client price

From 1200€

skinzzo4.0medical secret_RF.jpg
secret rf fda approved.png

Indications

FACE TREATMENTS

Non-Ablative Skin Resurfacing
Acne Scars
Tone & Texture Improvement
Active Acne
Wrinkle Reductions
Non-surgical Facelifts
Atrophic Scars
Skin Lifting & Tightening
Pore Reductions

BODY TREATMENTS

Skin Tightening
Scars
Spider Veins
Stretch Marks

Fractional RF micro-needle

Non-surgical Facelifts
Skin Tightening
Wrinkle Reductions
Pore Reductions
Acne Scars
Scars
Spider Veins
Stretch Marks


Accurate penetration depth control up 3.5mm Minimally invasive process Greater and deeper volumetric heating

1540nm Fractional laser

Non-Ablative Skin Resurfacing
Active Acne
Atrophic Scars
Wrinkle Reductions
Skin Lifting & Tightening
Tone & Texture Improvement


Low water absorption with deep penetration No vaporization Gentle treatment process Wider and greater volumetric heating


Benefits and Advantages of


Secret DUO provides a novel treatment combination that delivers more effective and efficient clinical results with virtually no downtime and minimal side effects. With Secret DUO, your patients will experience continual improvements in the six months following the final treatment session, leading to higher satisfaction and no disruptions to everyday activities. Patients will experience improved smoothness, elasticity, firmness and texture within one month of treatment, ultimately giving them healthier, younger and fresher looking skin. Secret DUO also facilitates effective treatment of a wide array of skin disorders without complications. This increases your potential income and delivers a high ROI like never before.


Quick & Easy Operation

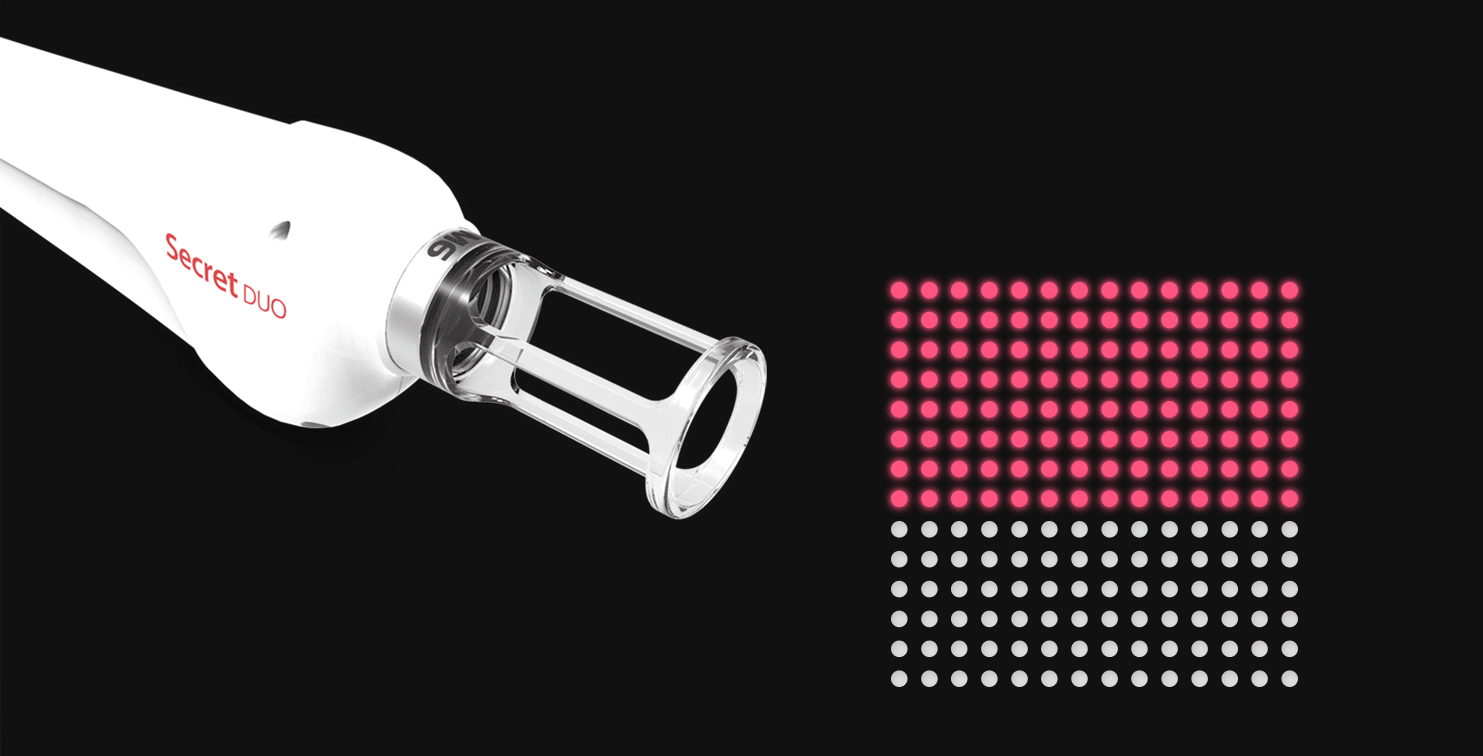

Scanning technology makes it possible to provide rapid treatment across a range of treatment areas with an easily adjustable scan size from 1x1 (1mm) to 10x10 (10mm). Fully customizable patterns also enable more treatment options depending on the shape of the indication.


Five different scan patterns for more treatment options
Scan size: 1x1 - 10x10mm
Dot distance: 0.1 – 2.0mm


Less Downtime and Effective Treatment

Multi-Sub-pulses allow deeper penetration with less heat dissipation and thermal damage to surrounding tissue, which promotes a better healing process without unnecessary damage to the epidermal layer.


Minimal Discomfort and Uniform Thermolysis

The finest medical grade needles demonstrate the highest level of smooth surface quality and durability, enabling uniform energy delivery and even coverage of target areas while avoiding any unwanted damage to surrounding tissue or uneven coagulation.


Reliable and Effective Results

Secret Duo has the outstanding ability to deliver the most precise thermal effect to the correct skin depth with minimal downtime. Furthermore, the Secret Duo’s non-insulate fine needles create greater sub and deep dermal remodeling while stimulating both layers at the same time.

Technical Highlights

I – Motion (I-Stack)


600㎛ Lens

15mm

15mm

Energy output per DOT can be superimposed 1-10 times per scan.


1540nm Er: glass Fractional Laser

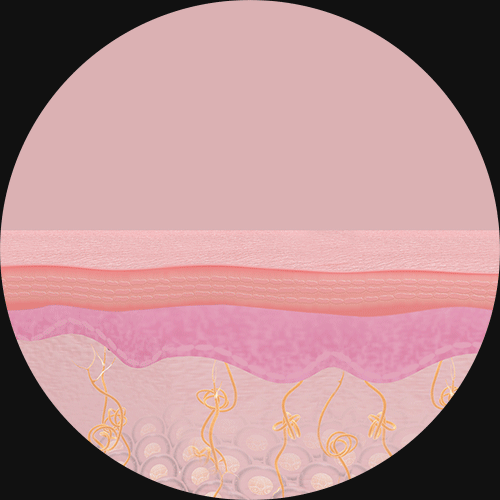

The non-ablative fractional laser beams are delivered as multiple columns in the dermis and primarily targeted at dermal water, which induces collagen heating and dermal remodeling with no ablative effect on the epidermal layer. This gentle resurfacing process facilitates faster recovery and a lower incidence of postoperative side effects compared to ablative lasers.


The optional 600um lens enables a much gentler resurfacing process with virtually no side effects and quick recovery time.


Micro-needle Fractional RF

Advanced micro-needling bipolar RF technology delivers precisely controlled RF energy to selectively adjusted depths (0.5mm to 3.5mm) via a needle head of the finest medical grade, increasing treatment efficacy for photoaging and scars on the face and body.


• Dimensions: 196.5*Ø62*Ø41 (mm)
• Weight: 500g


MTR-AC-C64



64 pin semi-insulated
micro-needle cartridges
Treatment Area: 15*15 (mm)
Max Output: 70 watts
Main Uses:
Required for a greater thermal effect on dermis/subcutaneous tissue


MTR-AC-C-25



25 pin semi-insulated
micro-needle cartridges
Treatment Area: 10*10 (mm)
Max Output: 25 watts
Main Uses:
Required for a greater thermal effect on dermis/subcutaneous tissue


MTR-AC-25



25 pin non-insulated
micro-needle cartridges
Treatment Area: 10*10(mm)
Max Output: 25 watts
Main Uses: Mostly main indications


MTR-AC-10



10 pin non-insulated
micro-needle cartridges
Treatment Area: 0.25*18 (mm)
Max Output: 25 watts
Main Uses: Stretch marks, nasolabial folds, crow’s feet

SmartCure™

The SmartCure™ smart electro pen enables a range of thermo-coagulation techniques in combination with a single electrolysis needle and a variety of nokor needles to treat a larger range of applications from spider veins to acne, wrinkles and depressed scars.


K3i

The K3i insulated single electrolysis needle (0.075mm) can treat undesirable thread and spider veins by delivering heat solely to the target vein without risks of damage to the epidermis and surrounding tissue.The Ø 0.075 (mm) insulated needle
is for thread veins.


AC-01

The AC-01 insulated single needle smoothly penetrates the skin and generates heat stimulation in the fibroblasts in order to improve wrinkles and skin texture via collagen regeneration and remodeling.The 1.5mm insulated needle is for acne.


27G / 19G

Combined with RF energy, the subcision technique provides significant long-term improvement in scars by inserting a needle under the skin parallel to the skin surface and moving gently back and forth between the dermis and subcutaneous tissue.The insulated subcision needle
is for depressed scars.


The first device to combine
a fractional micro needle
with an Er: glass laser


Lasers: Select the right lens for the indication with 300 and 600um lenses


A range of
treatment options for the epidermis and dermis


A range of
needle tips


Multi-platform
functionality enables bi-polar and single needle


I-motion
Features
